Solid State Drives (SSDs) have revolutionized data storage with their speed and reliability. A key aspect of their performance lies in the type of connector used, which determines compatibility and speed. In this article, we will explore the various types of SSD connectors, highlighting their unique features, compatibility, and performance implications. Understanding these connectors is essential for anyone looking to upgrade their storage solutions or build a new PC. This straightforward guide will cover everything from the common SATA interface to the cutting-edge NVMe over PCIe.

Also see: Checking SSD Compatibility with Your Motherboard

All SSD Connectors Types Explained

SATA (Serial ATA) SSD Connector

Overview

The SATA (Serial ATA) interface is a common and long-established standard for connecting SSDs and hard drives to the computer’s motherboard. It’s known for its wide compatibility and has been a cornerstone in PC storage.

SATA SSD Connector

Evolution and Versions

SATA has seen several iterations:

  1. SATA I: Launched in 2003, it offered a maximum data transfer rate of 1.5 Gb/s. It was the first step in moving away from the older PATA standard.
  2. SATA II: Introduced in 2004, doubling the maximum data transfer rate to 3 Gb/s and adding features like Native Command Queuing (NCQ).
  3. SATA III: The most common version today, released in 2009, further doubling the transfer rate to 6 Gb/s.

Key Features

  • Universal Connector: The SATA connector is standardized, featuring an L-shaped key to prevent incorrect insertion.
  • Cable Design: SATA cables are thin and flexible, allowing for easier cable management inside a PC case. They can be up to 1 meter in length, offering more flexibility in system design.
  • Power Management: SATA includes advanced power management features, beneficial for energy efficiency, especially in laptops.

Compatibility and Usage

  • Backward Compatibility: SATA III ports are backward compatible with SATA II and SATA I drives, albeit at lower speeds.
  • Widespread Adoption: SATA SSDs are commonly used in a variety of systems, from older desktops and laptops to external storage solutions.

Limitations

  • Speed Constraints: The maximum throughput of 6 Gb/s in SATA III can be a bottleneck for high-performance applications, as newer SSD technologies offer much higher speeds.

Ideal Use Cases

  • General Computing: Due to its wide compatibility and sufficient speed for most everyday tasks, SATA remains a popular choice for general computing needs.
  • Budget Builds and Upgrades: For those upgrading older systems or building on a budget, SATA SSDs offer a significant improvement over traditional hard drives at a reasonable cost.

While SATA connectors may not offer the highest data transfer speeds available today, their universal compatibility, ease of use, and cost-effectiveness make them a practical choice for a wide range of computing needs.

Related resource: Check PC Hardware Manufacturer & Model via WMIC in CMD

M.2 SSD Connector and NVMe

Overview

The M.2 connector has become a standard in modern computing for connecting SSDs, particularly in laptops, desktops, and high-performance computing systems. NVMe (Non-Volatile Memory Express) is a protocol designed to take advantage of the high speeds provided by the PCIe interface, often used in conjunction with M.2 SSDs.

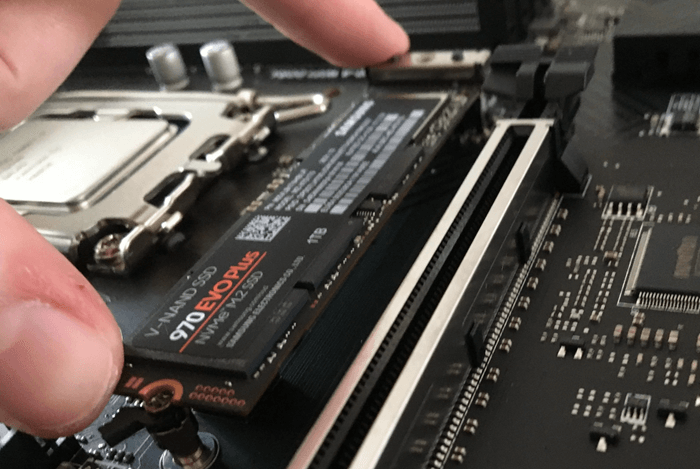

M.2 NVMe SSD Connectors

M.2 Connectors: Versatility and Form Factor

  • Design: M.2 is a small form factor connector, much smaller than traditional 2.5-inch SATA drives. It’s designed for internally mounted storage in compact devices.
  • Interface Support: M.2 slots can support both SATA and PCIe interfaces, making them highly versatile.
  • Physical Variations: M.2 SSDs come in various sizes, commonly referred to by numbers like 2280 (22mm wide and 80mm long). This allows for a range of SSD sizes to fit different device requirements.

NVMe Protocol: Enhancing PCIe Performance

  • Purpose: NVMe is designed specifically for SSDs to exploit the speed of the PCIe interface, surpassing the performance of SATA-based SSDs.
  • Benefits: NVMe reduces latency and increases IOPS (Input/Output Operations Per Second), providing faster data access and transfer rates.

M.2 and NVMe in the Market

  • Popularity: M.2 connectors, especially those supporting NVMe over PCIe, are increasingly popular in all kinds of computers, from ultrabooks to high-performance desktops and gaming laptops.
  • Performance: For tasks that demand high-speed data transfer, such as gaming, video editing, and intensive applications, M.2 NVMe SSDs offer superior performance.

Compatibility Considerations

  • Motherboard Support: It’s crucial to check the motherboard for M.2 slot support and compatibility, particularly whether it supports PCIe and NVMe, as not all M.2 slots are the same.
  • Use Cases: M.2 NVMe SSDs are ideal for users seeking high-performance storage solutions, offering a significant advantage over traditional SATA SSDs in speed-intensive scenarios.

Limitations

  • Cost: M.2 NVMe SSDs tend to be more expensive compared to SATA SSDs.
  • Device Compatibility: Some older systems may not support NVMe, which is something to consider when upgrading older hardware.

M.2 connector, particularly when used with NVMe over PCIe, represents a significant step forward in SSD technology, offering high-speed performance in a compact, versatile form factor. This makes them an increasingly popular choice across a wide range of computing applications.

Linked issue: HDD Not Detected After Installing M.2 SSD in Windows 11/10

mSATA Connector

Overview

mSATA, which stands for mini-SATA, is a smaller version of the SATA interface designed for use in compact devices. While its usage has declined with the advent of M.2, it remains relevant in certain scenarios.

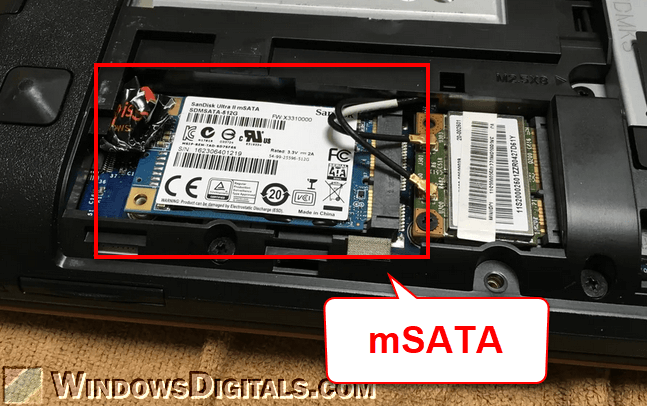

mSATA SSD Connector

Key Characteristics of mSATA

  • Form Factor: mSATA SSDs are much smaller than traditional 2.5-inch SATA drives, designed specifically for use in laptops, tablets, and other space-constrained devices.
  • Connector and Interface: The mSATA connector resembles a miniaturized version of the standard SATA connector, maintaining the same signal and power specifications as its larger counterpart.

Performance and Capacity

  • Speed: mSATA SSDs offer similar performance levels to their 2.5-inch SATA equivalents, with the most common being SATA III, supporting up to 6 Gb/s data transfer rates.
  • Storage Capacity: While mSATA drives typically have lower maximum storage capacities compared to larger SSDs, they still offer a range of options suitable for various needs.

Usage and Compatibility

  • Target Devices: mSATA is predominantly found in older laptops, ultra-compact PCs, and some small form factor motherboards.
  • Compatibility Considerations: It’s important to verify if a device has an mSATA slot, as they are less common in newer systems with the rise of M.2.

Limitations and Decline

  • Phasing Out: The mSATA interface is gradually being phased out in favor of the more versatile and faster M.2 interface.
  • Limited Performance Growth: Unlike M.2, which can leverage faster PCIe lanes, mSATA is constrained by the SATA interface’s maximum speed.

Ideal Use Cases

  • Upgrading Older Systems: mSATA SSDs are a good option for upgrading older systems that have mSATA slots but lack M.2 compatibility.
  • Space-Constrained Applications: In situations where space is at a premium, and M.2 is not an option, mSATA offers a compact solution without resorting to larger 2.5-inch drives.

While mSATA has been largely superseded by M.2, it still holds relevance in specific scenarios, particularly for upgrading older, space-constrained systems. Its design caters to a niche that requires compact storage solutions without the need for high-speed interfaces like PCIe.

Might be useful: How to Format New SSD Drive in Windows 11/10

PCIe AIC (Add-In Card) SSD Connector

Overview

PCIe (Peripheral Component Interconnect Express) is a high-speed interface standard used not just for graphics cards and other peripherals but also for connecting SSDs. PCIe SSDs are a significant step up from SATA SSDs in terms of performance.

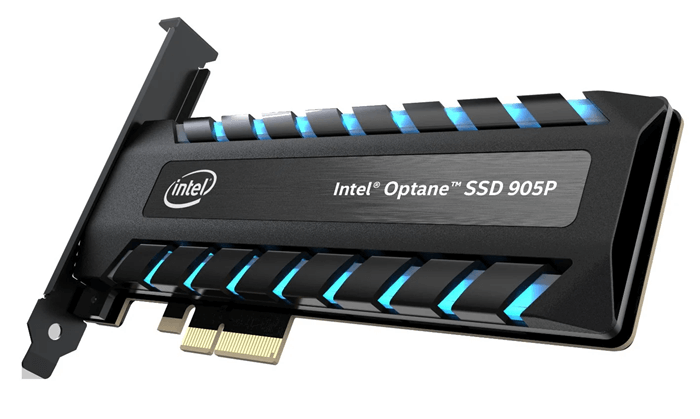

PCIe ACI SSD Connector

Key Features of PCIe SSDs

  • Speed: PCIe SSDs offer significantly higher data transfer rates compared to SATA. The speed depends on the number of lanes (x1, x2, x4, x8, x16) used and the generation of the PCIe interface.
  • Generations: PCIe has several generations (1.0, 2.0, 3.0, 4.0, 5.0, etc.), with each generation doubling the bandwidth per lane. For instance, PCIe 3.0 x4 has a theoretical maximum throughput of around 4 GB/s.
  • Direct Connection: Unlike SATA, which uses a separate controller, PCIe SSDs connect directly to the CPU, reducing latency and increasing performance.

Types of PCIe SSDs

  • Add-In Cards (AIC): These SSDs plug directly into a PCIe slot on the motherboard, resembling a graphics card. They are common in desktops where space and cooling are less of a concern.
  • M.2 PCIe SSDs: M.2 slots can also support PCIe SSDs, often using NVMe for even faster performance. These are prevalent in both desktops and laptops for their compact form factor.

Compatibility and Use

  • Motherboard Support: To use a PCIe SSD, the motherboard must have available PCIe slots and, for M.2 PCIe SSDs, an M.2 slot that supports PCIe.
  • Use Cases: Ideal for high-performance computing, gaming, video editing, and other data-intensive tasks.

Advantages Over SATA

  • Higher Speeds: The main advantage of PCIe SSDs over SATA is their higher speed, which is crucial for applications that require fast data access and transfer.
  • Reduced Latency: The direct connection to the CPU reduces latency, enhancing overall system responsiveness.

Limitations

  • Cost: PCIe SSDs are generally more expensive than SATA SSDs.
  • Compatibility and Availability: Not all systems have the necessary PCIe slots or M.2 slots with PCIe support, and some older systems may not fully utilize the potential of the latest PCIe generations.

PCIe SSD connectors represent the cutting edge in SSD technology, offering superior speeds and performance for demanding applications. They are particularly relevant in scenarios where high data transfer rates and low latency are crucial, such as in gaming, professional video editing, and high-performance computing.

Recommended guide: Partition New, Existing or External SSD in Windows 11/10

U.2 Connector

Overview

U.2, previously known as SFF-8639, is a connector interface primarily used for enterprise SSDs. It evolved to meet the demands of high-performance storage systems, often found in server and data center environments.

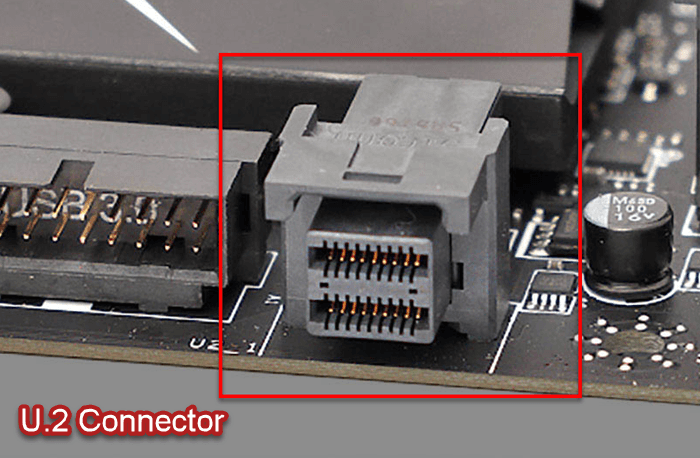

U.2 SFF-8639 SSD Connector

Key Features of U.2 Connectors

  • Design and Compatibility: U.2 connectors are larger than M.2 and are designed to interface with 2.5-inch form factor SSDs. They use the PCIe interface and are compatible with NVMe protocol, offering high-speed data transfer rates.
  • Cabling and Physical Layout: U.2 uses a cabling system that allows the SSD to be placed further from the motherboard, offering more flexibility in system design compared to M.2.
  • Capacity and Performance: U.2 SSDs generally offer higher storage capacities and endurance levels than consumer-grade SSDs, tailored for enterprise workloads.

Usage and Benefits

  • Enterprise and Server Environments: U.2 connectors are mainly used in server and enterprise environments where high capacity, reliability, and performance are critical.
  • Hot-Swapping Capability: Many U.2 SSDs support hot-swapping, allowing drives to be changed without powering down the system, a crucial feature for maintaining server uptime.

Compatibility Considerations

  • Motherboard and System Support: U.2 connectors require compatible motherboards or PCIe adapter cards. They are less common in consumer-level hardware and more prevalent in enterprise-grade systems.
  • Interface and Protocol: U.2 SSDs use the PCIe interface and often employ the NVMe protocol, similar to high-performance M.2 SSDs, but in a different form factor.

Comparing U.2 to Other Connectors

  • Versus SATA: U.2 offers significantly higher performance than SATA, with faster data transfer rates and lower latency.
  • Versus M.2: While M.2 is more compact and commonly used in consumer devices, U.2 provides higher capacity and endurance, suitable for enterprise workloads. U.2’s cabling system also allows for more flexible placement within a system.

Limitations

  • Cost and Accessibility: U.2 SSDs and compatible hardware tend to be more expensive, reflecting their enterprise-grade design.
  • Physical Size: The 2.5-inch form factor of U.2 drives makes them larger than M.2 drives, potentially an issue in space-constrained environments.

U.2 connectors play a significant role in the enterprise storage market, offering high performance, capacity, and flexibility. They are particularly valuable in server and data center environments, where their benefits align well with the demands of enterprise-level storage tasks.

Thunderbolt and USB SSD Connector

Overview

Thunderbolt and USB connectors are used for external SSDs, providing flexibility and ease of use for users who need portable storage solutions.

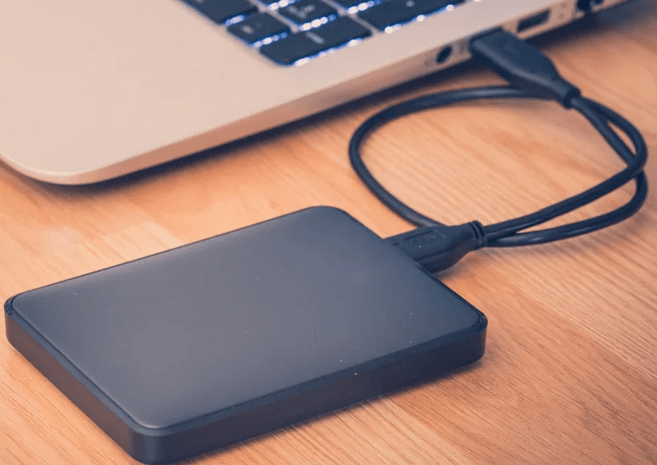

Thunderbolt USB SSD Connector

Thunderbolt Connectors

  • High-Speed Data Transfer: Thunderbolt, especially in its latest versions (e.g., Thunderbolt 3 and 4), offers very high data transfer rates, up to 40 Gbps.
  • Daisy-Chaining: One of Thunderbolt’s unique features is the ability to daisy-chain multiple devices, including SSDs, without significant performance loss.
  • Versatility: Thunderbolt ports can carry data, video, and power over a single cable, making them highly versatile.

USB Connectors

  • Widespread Use: USB connectors, including USB 3.x and USB-C, are the most common interfaces for external SSDs, compatible with a wide range of devices.
  • Data Transfer Speed: While not as fast as Thunderbolt, USB 3.x offers respectable speeds, up to 10 Gbps for USB 3.2 Gen 2×2.
  • Universal Compatibility: USB SSDs can be used with almost any computer or device with a USB port, making them extremely flexible.

Compatibility and Use

  • Device Compatibility: Almost all modern computers and many other devices have USB ports, and many now include Thunderbolt, especially laptops and Macs.
  • Use Cases: Ideal for users who need portable storage for backups, large file transfers, or as a means to increase the storage capacity of laptops and tablets.

Limitations

  • Performance Variability: The performance of USB SSDs can vary significantly based on the USB version and the quality of the SSD itself.
  • Cost: Thunderbolt SSDs tend to be more expensive than their USB counterparts due to the higher data transfer rates and additional features.

Thunderbolt and USB connectors are essential for external SSDs, offering a balance of speed, flexibility, and ease of use. Thunderbolt is ideal for users who need the highest performance and versatility, while USB SSDs provide a more universally compatible and cost-effective solution for portable storage needs.

Exploring Other SSD Connector Types

While SATA, PCIe, M.2, and U.2 are the most commonly discussed connectors in the realm of SSDs, there are other types that, while less prevalent, still play a role in specific niches or historical contexts.

SATA Express

  • Introduction: SATA Express was an attempt to bridge the gap between SATA and PCIe interfaces. It combined SATA and PCIe lanes into a single connector.
  • Performance: It offered higher bandwidth than traditional SATA but didn’t gain much traction, as the advent of M.2 and NVMe quickly overshadowed it.
  • Current Status: Today, SATA Express is largely obsolete, with M.2 being the preferred choice for higher-speed SSD connections.

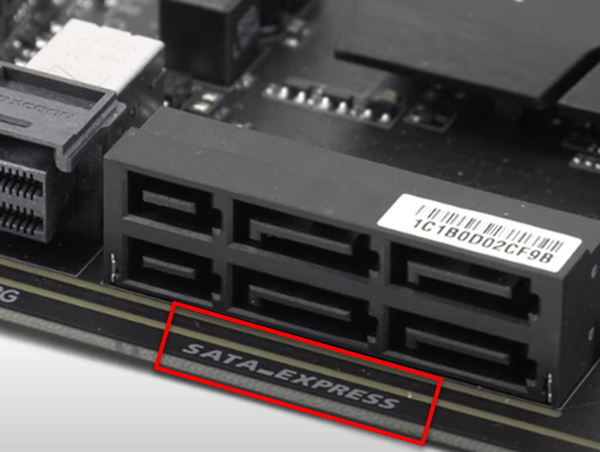

SATA Express SSD Connector

mPCIe (Mini PCI Express)

  • Design: mPCIe is a smaller version of the PCI Express interface, originally designed for use in laptops.
  • Usage: It was primarily used for adding peripherals like Wi-Fi cards, but some SSDs were made in the mPCIe form factor.
  • Relevance: With the rise of M.2, which offers greater flexibility and speed, mPCIe has become less common for SSDs.

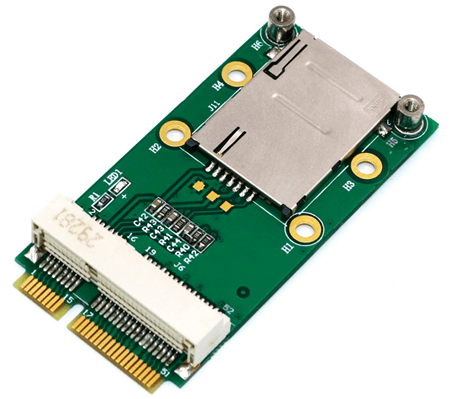

mPCIe SSD Connector Type

ExpressCard

  • Application: ExpressCard slots were found on older laptops, allowing for expandable storage and other peripherals.
  • Form Factor: It offered a convenient way to add more storage externally but was limited in speed and capacity.
  • Current Usage: ExpressCard has largely been replaced by USB and Thunderbolt ports for external expansion needs.

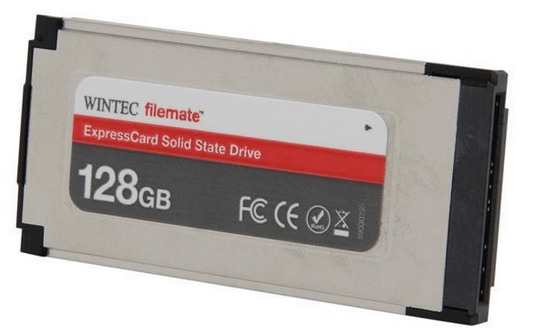

ExpressCard Solid State Drive Connector Type

Fibre Channel

  • Enterprise Focus: Predominantly used in enterprise environments for connecting high-speed storage networks.
  • Attributes: Fibre Channel is known for its high speed and reliability but requires specialized hardware and is not typically used in consumer-level devices.

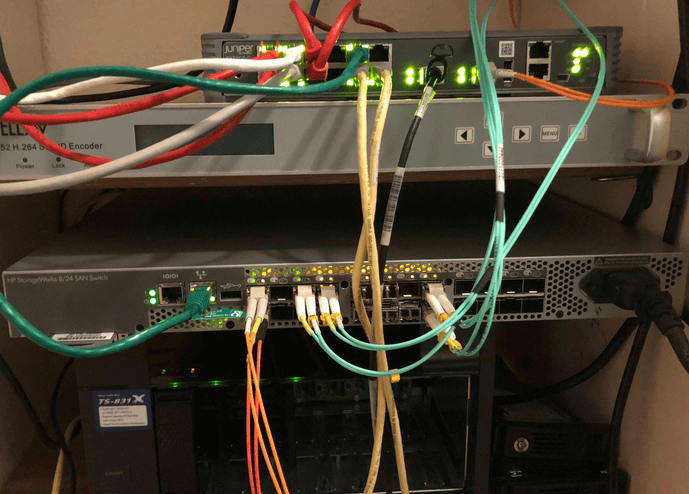

Fibre Channel SSD Connector Type

Future Trends

The SSD connector technology continuously evolves, with new standards and protocols emerging to meet the increasing demands for speed and capacity in both consumer and enterprise markets.

Future developments are likely to emphasize even greater speeds and more compact form factors, possibly integrating more advanced features like improved power efficiency and enhanced data security.

Summary: Choosing the Right SSD Connector

When selecting an SSD connector, the choice largely depends on your specific needs, device compatibility, and performance requirements. Here’s a quick summary to help guide your decision:

  • SATA 2.5″ SSDs: Standard size, widely compatible with most desktops and laptops. Ideal for general computing needs, offering good speeds (up to 6 Gb/s) and affordability.
  • M.2 SATA SSDs: Compact form factor, suitable for laptops and space-constrained desktops. These use the SATA interface and provide similar performance to the 2.5″ SATA SSDs but in a much smaller size.
  • M.2 NVMe PCIe SSDs: High-speed SSDs in a compact M.2 form factor. They use the PCIe interface combined with NVMe protocol for much faster performance than SATA SSDs. Ideal for high-performance computing, gaming, and data-intensive applications.
  • PCIe AIC (Add-In Card) SSDs: Larger SSDs that slot directly into the PCIe slots on a motherboard, typically in desktops. They offer high data transfer speeds, leveraging the full bandwidth of the PCIe interface. Suitable for users requiring top-tier performance.
  • mSATA Connectors: A miniaturized version of the SATA interface, used in compact devices and older laptops. Offers similar performance to SATA but in a smaller form factor.
  • U.2 Connectors: Designed for enterprise use, offering high storage capacity and durability. Uses PCIe interface with flexible placement options due to its cabling system. Suitable for servers and high-end workstations.
  • Thunderbolt (External SSDs): Offers extremely high transfer speeds (up to 40 Gbps) and daisy-chaining capabilities. Ideal for external storage solutions where high performance is required, such as video editing or intensive data processing.
  • USB (External SSDs): The most common interface for external SSDs, with widespread compatibility. Speed varies with USB versions, offering up to 20 Gbps (USB 3.2 Gen 2×2) and 40 Gbps (USB4) for high-speed data transfer.

The key to selecting the right SSD connector lies in understanding your system’s requirements, the performance demands of your tasks, and, of course, your budget. With the right connector, you can significantly enhance your computer’s storage speed, efficiency, and overall performance.
